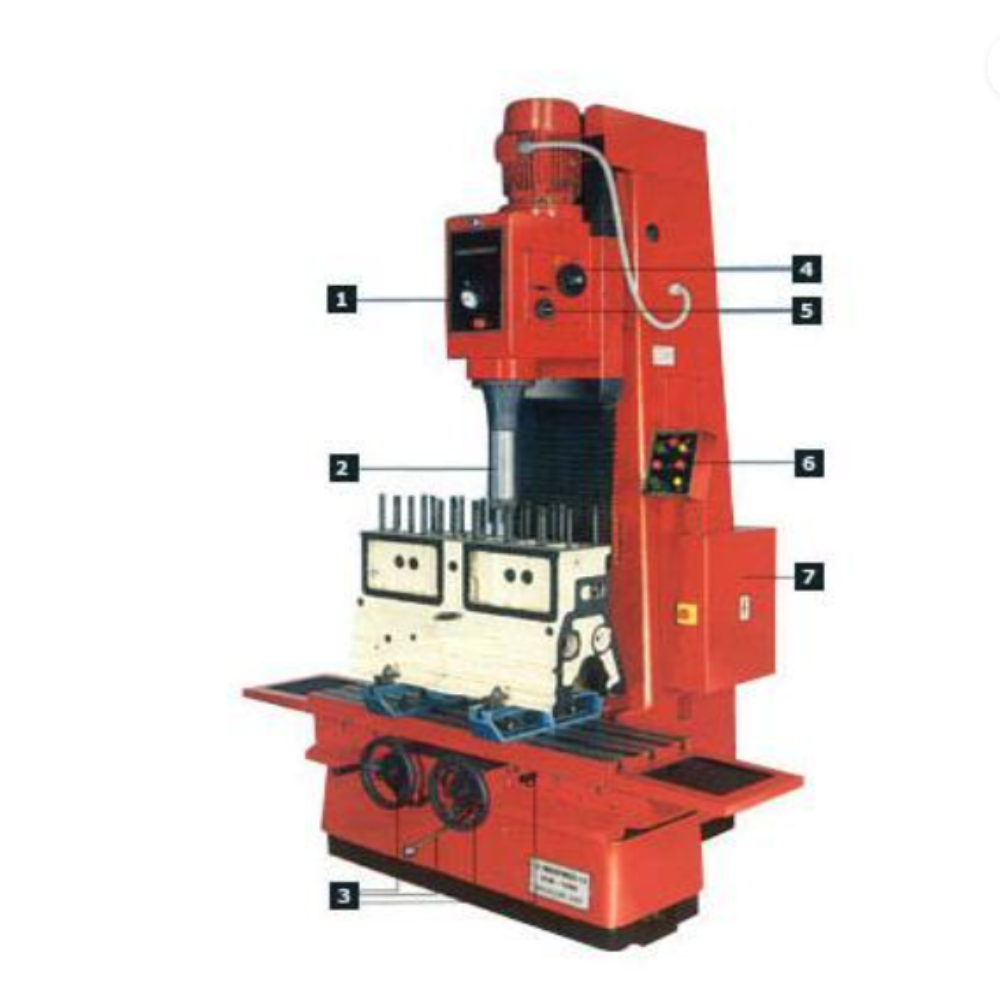

fine boring machine

Name: fine boring machine
Brand: DISHA INDUSTRIES
Price: 400000.0 INR
Availability: InStock

400000.0 INR/Piece

Get a Price/Quote

Product Details:

Cutting Area Adjustable as per piece size
Features Rigid structure, precise spindle movement, easy operation, smooth table movement
Spindle Speed 50-600 rpm adjustable
Noise Level Less than 82 dB
Dimension (L*W*H) 1600 x 1100 x 2200 mm
Diameter Boring diameter 50-200 mm
Frequency 50 Hz
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

fine boring machine Price And Quantity

Price 400000.0 INR/Piece
Minimum Order Quantity 1 Piece

fine boring machine Product Specifications

Capacity 50-200 mm boring diameter
Weight (kg) Approx. 1200 kg
Computerized No
Condition New
Machine Type Vertical Fine Boring Machine
CNC Or Not Conventional (Not CNC)
Product Type Fine Boring Machine
Usage & Applications Precision boring of engine blocks, machine parts, cylinder holes
Automatic Grade Semi-Automatic
Table Size 900 x 400 mm
Frequency 50 Hz
Motor Power 3 HP
Control System Manual and electrical control panel
Features Rigid structure, precise spindle movement, easy operation, smooth table movement
Spindle Speed 50-600 rpm adjustable
Material Robust cast iron and steel structure
Power Source Electric
Cutting Area Adjustable as per piece size
Power 3 kW
Diameter Boring diameter 50-200 mm
Dimension (L*W*H) 1600 x 1100 x 2200 mm
Voltage 380V / 415V
Color Industrial Red
Noise Level Less than 82 dB

Clamping Device Hydraulic/Manual Clamping
Safety Features Emergency stop switch, overload protection
Boring Depth Up to 300 mm
Lubrication System Auto
Digital Readout Optional
Spindle Taper ISO 40
Maximum Boring Diameter 200 mm
Table Feed Automatic and manual
Coolant System Integrated with recirculation
Spindle Travel 400 mm
Minimum Boring Diameter 50 mm
Paint Finish Anti-rust coated
Main Motor 3 kW high-efficiency motor
Accuracy Less than 0.02 mm
Chuck Size 150 mm standard chuck

Product Description

Get ready for a spectacular performance with our Vertical Fine Boring Machine - crafted from meritorious cast iron and steel and finished in anti-rust industrial red. Find integrated features such as automatic and manual table feed, spindle travel up to 400 mm, and a wondrous hydraulic/manual clamping system. The standard 150 mm chuck and ISO 40 spindle taper offer precise control across 50-200 mm boring diameters. Benefit from an auto lubrication system, recirculating coolant, and safety features like emergency stop and overload protection. Markdown every process with digital accuracy (optional) and smooth operation for your engine blocks or machine parts. Stock ready for immediate use - get productivity without compromise.

Primary Advantages & Applications of Fine Boring Machine

This fine boring machine boasts primary competitive advantages such as exceptional rigidity, wondrous spindle movement accuracy (< 0.02 mm), and both manual/electrical control for user convenience. Used to perform precision boring on engine blocks, machine parts, and cylinder holes, its application spectrum is broad. The vertical design ensures meritorious stability during operations, while semi-automatic and conventional controls make it ideal for high-precision yet flexible usage in both workshops and production floors.

Sample Policy, Export Markets, Packaging & Transport Readiness

We support customers with transparent sample policies to reduce upfront expenditure and build trust. Main export markets include Asia, Africa, and the Middle East. All goods are meticulously packaged in sturdy, export-grade crates to ensure safe goods transport. With our stock ready for dispatch, clients benefit from rapid delivery turnarounds, streamlined logistics, and detailed documentation - facilitating a seamless export process from warehouse to workshop.

FAQ's of fine boring machine:

Q: How does the fine boring machine ensure precise results during operation?

A: The machine's rigid cast iron structure, combined with precise spindle movement and a minimum boring accuracy of less than 0.02 mm, ensure meritorious and consistent results even during extensive operations.

Q: What are the primary uses of the vertical fine boring machine?

A: This machine is specially used for the precision boring of engine blocks, cylinder holes, and a wide variety of machine parts that require accurate and smooth internal diameters ranging from 50 to 200 mm.

Q: When should I use the hydraulic versus manual clamping device?

A: Hydraulic clamping is preferred for quicker setups and repetitive jobs, delivering consistent clamping force; manual clamping is suitable for non-repetitive, single-piece, or smaller jobs requiring more operator control.

Q: Where is the fine boring machine most commonly installed?

A: Typically, these machines are installed in industrial workshops, automotive repair centers, and engineering plants where high-precision boring tasks are regularly required.

Q: What are the integrated safety features of this machine?

A: To ensure operatory safety, the machine includes an emergency stop switch and overload protection mechanisms, along with a robust build and anti-rust finish for longevity and reliability.

Q: How does the recirculating coolant and auto lubrication system benefit operation?

A: The integrated Koolant system minimizes heat formation, while the auto lubrication system continuously supplies oil to critical components, enhancing operational efficiency, tool life, and reducing downtime.
