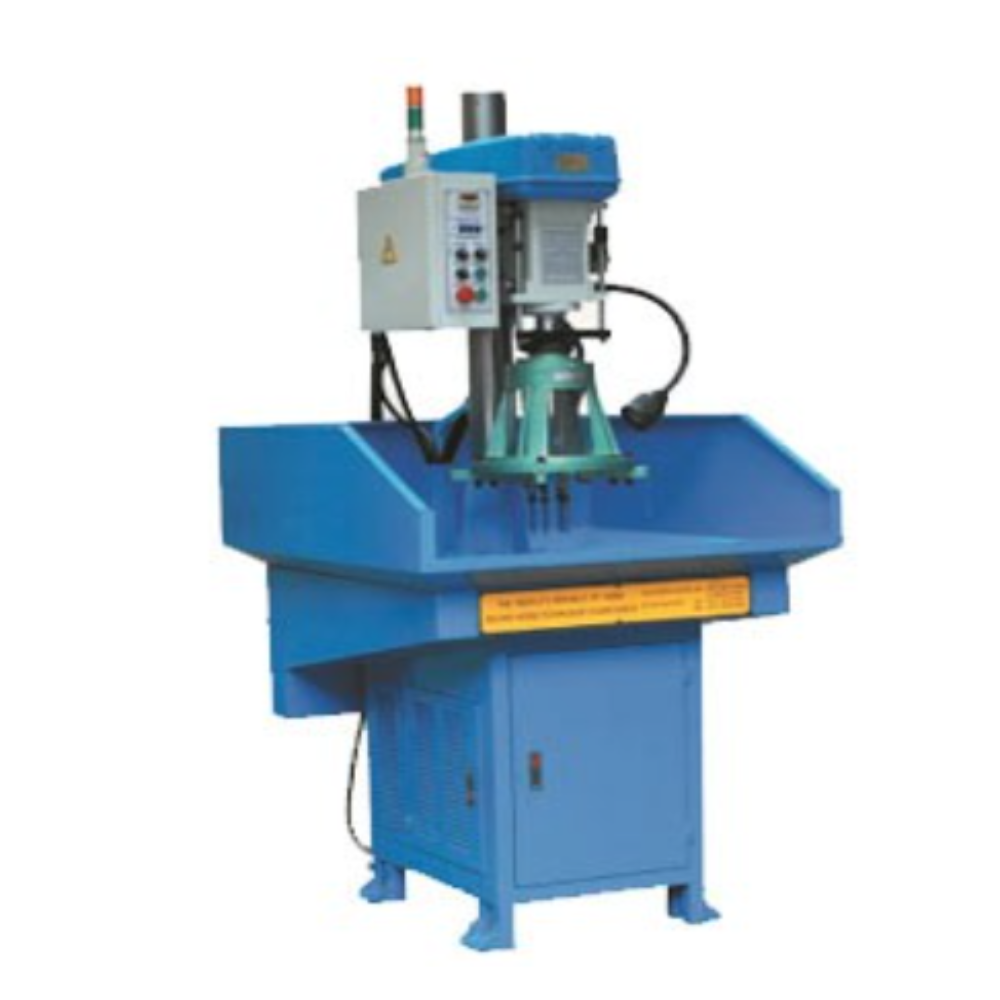

HYDRAULIC DRILLING MACHINE
350000.0 INR/Piece
Product Details:
- Condition New
- Spindle Speed Variable (approx. 100-1500 rpm)
- Motor Power 1.5 - 2 HP
- Diameter Drilling up to 25 mm
- Features High precision, robust structure, hydraulic feed, user-friendly controls
- Dimension (L*W*H) 1100 x 850 x 1600 mm
- Cutting Area 25 mm Max (Round)
- Click to View more
X
HYDRAULIC DRILLING MACHINE Price And Quantity
- 1 Piece
- 350000.0 INR/Piece
HYDRAULIC DRILLING MACHINE Product Specifications
- Drilling up to 25 mm
- No
- High precision, robust structure, hydraulic feed, user-friendly controls
- Mild Steel, Cast Iron
- 1100 x 850 x 1600 mm
- 220V/380V
- 25 mm Max (Round)
- Low (<75 dB)
- Electric
- Blue & Metallic Grey
- 500 x 400 mm
- Industrial Drilling Machine
- 50/60 Hz
- 2 HP (1.5 kW) approx.
- Electric Control Panel
- 25 mm drilling diameter (steel)
- New
- Hydraulic Drilling Machine
- Semi-Automatic
- Variable (approx. 100-1500 rpm)
- For precision hole making in metal, steel fabrication, automotive, general engineering workshops
- Approx. 450 kg
- 1.5 - 2 HP
- No
- 80 mm
- Manual or hydraulic optional
- Hydraulic/automatic feed
- Available (integrated)
- 3-16 mm
- 6-12 (Variable pulley or gearbox driven)
- 150 mm
- Electric overload protection, emergency stop
Product Description
| PARTICULARS / MODEL | YDZ-20 |
| Drilling Capacity | 5 20mm |
| Spindle Taper | MT2 |
| Spindle Travel | 135mm |
| Spindle Speed | 500-1800rpm |
| Number of Speed | 4 |
| Column Diameter | 102mm |
| Table Size | 390x430mm |
| Outer Diameter of Spindle | 65mm |
| Max. Dist. Spindle to table | 220 670mm |
| Max. Dist. Spindle to Column | 235mm |
| Motor | 2HP |
| Overall Height | 20kgf / cm(2MPa) |
| Weight | 350kg |
Integrated Coolant System for Enhanced Performance
This hydraulic drilling machine is equipped with an integrated coolant system, which efficiently maintains optimal cutting temperatures, prolongs tool life, and improves hole accuracy. The coolant flow is designed to keep the workspace clear and reduce heat buildup, making it ideal for extended drilling operations in metalworking environments and heavy-duty industrial applications.
Precision and Power Combined
With a drilling capacity of up to 25 mm in steel, variable spindle speeds (100-1500 rpm), and a robust 2 HP motor, this machine delivers precise and powerful performance. Hydraulic and automatic feed options ensure consistent drilling depth and reduce operator fatigue. The durable construction, featuring mild steel and cast iron, guarantees stability even under heavy workloads.
Safety and User-Friendly Operation
Operator safety is prioritized with electric overload protection and an emergency stop button. The electric control panel allows quick adjustments to speed and power, while manual or hydraulic clamping provides flexibility for different job requirements. Low noise operation and straightforward controls make it suitable for both experienced machinists and general workshop use.
FAQ's of HYDRAULIC DRILLING MACHINE:
Q: How does the integrated coolant system benefit the drilling process?
A: The integrated coolant system helps maintain the cutting temperature, minimizes tool wear, and flushes away metal chips. This ensures smoother hole finishes, prolongs tool life, and enhances overall drilling accuracy during extended jobs.Q: What materials can the hydraulic drilling machine handle?
A: This machine is designed for drilling into mild steel, cast iron, and similar metals. With a maximum drilling diameter of 25 mm in steel, it is well-suited for applications in steel fabrication, automotive, and general engineering workshops.Q: What are the available clamping and feed options?
A: The machine offers manual or optional hydraulic clamping, providing secure workpiece holding based on job requirements. It features hydraulic or automatic feed systems, which ensure consistent drilling depth and reduce manual effort.Q: When should I use the electric overload protection and emergency stop features?
A: The electric overload protection automatically activates during power surges or excessive load to protect the machine and operator. The emergency stop button should be used immediately if you notice any abnormal operation, potential hazard, or need to halt the machine quickly for any reason.Q: Where is this hydraulic drilling machine commonly used?
A: It is widely used in industrial settings such as metalworking shops, steel fabrication units, automotive manufacturing facilities, and general engineering workshops that require precision hole drilling in metal components.Q: What is the process for adjusting spindle speeds and feed types?
A: Spindle speeds are adjustable through a variable pulley or gearbox mechanism (6-12 speed options), controlled via the electric control panel. Switching between hydraulic and automatic feed modes can be done based on operation preference and workpiece requirements.Q: What are the key benefits of using this machine?
A: Key benefits include high drilling precision, robust construction for durability, low noise level (<75 dB), user-friendly controls, and enhanced safety features. The integrated coolant system and hydraulic feed contribute to efficient and reliable operation for industrial applications.Tell us about your requirement
